Flight Chair – MFC-5 Night Falcon

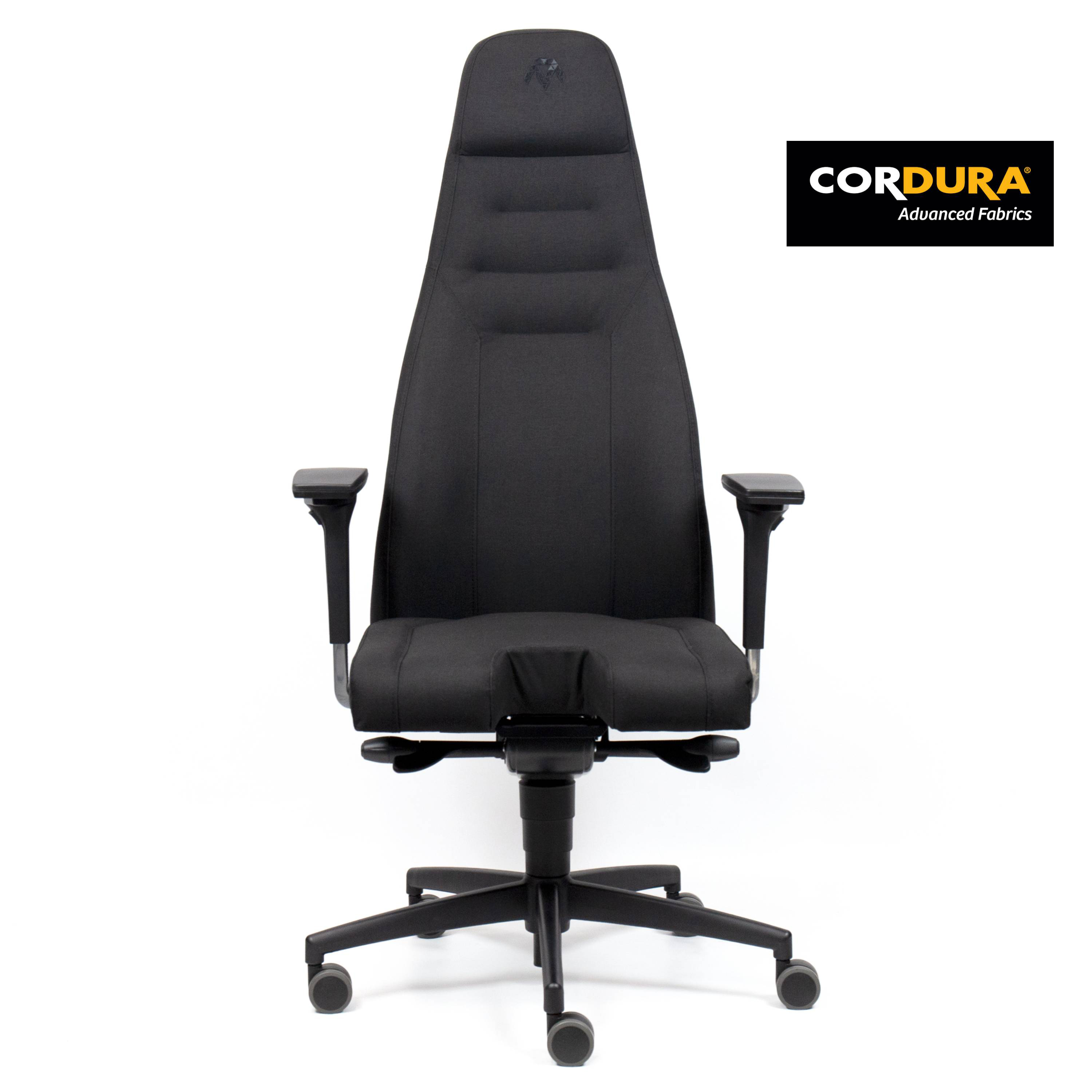

The Flight Chair is the first office chair developed especially for flight control. The MFC-5 Night Falcon is covered with Cordura Mil-spec (Black) fabric.

Selection:
Unbraked: Standard – for use without flight pedals.
Caster and Rotation Brake: The chair can be set in a fixed position for optimal pedal use.

Production time: 1-4 week(s)

SKU: 0246 Category:

Concept

Our goal was to create a chair that combines high quality, ergonomics, seating comfort (especially for long flights), and that works well with different flight control setups.

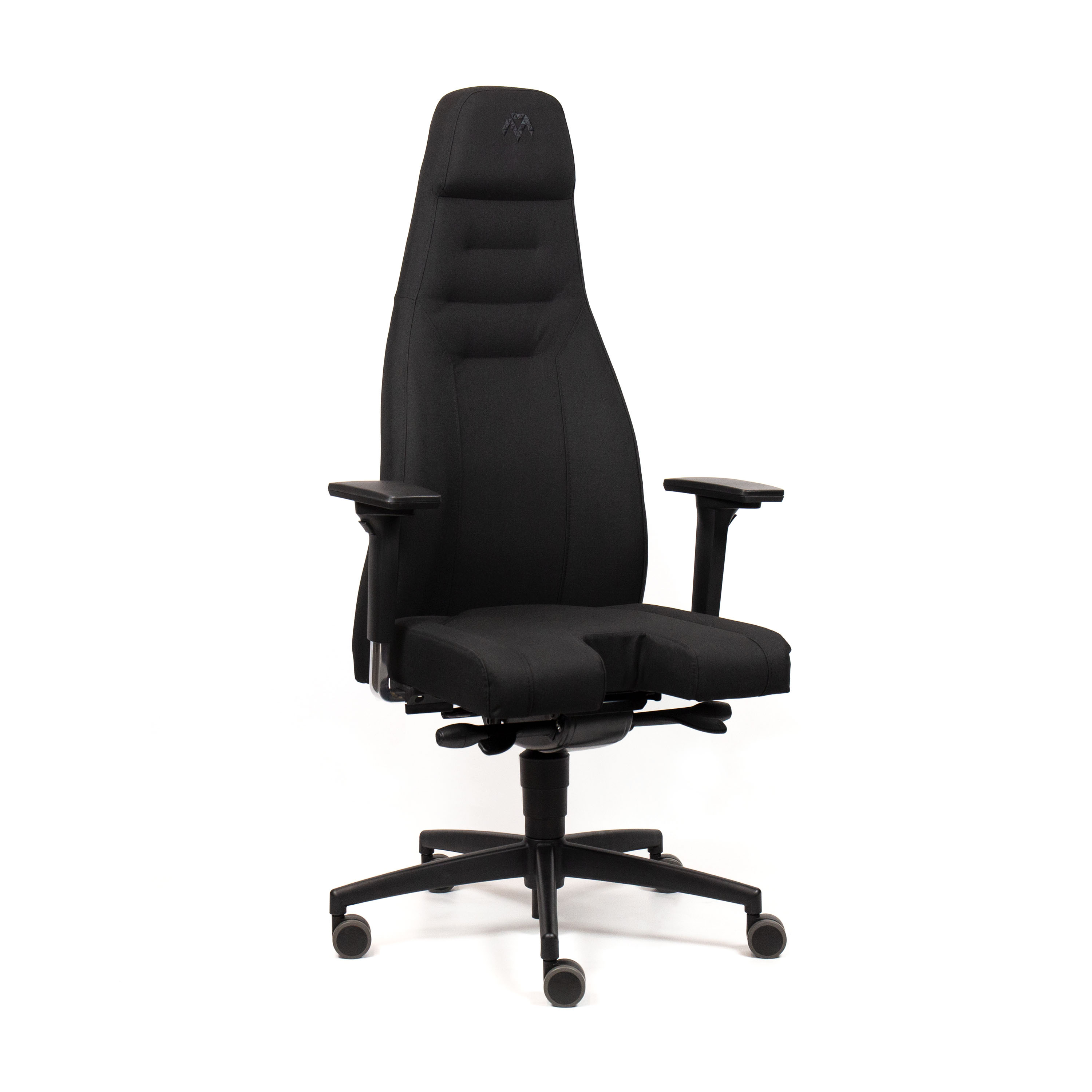

Also, the chair has a central cut-out in the seat to mount a center joystick in the perfect position.

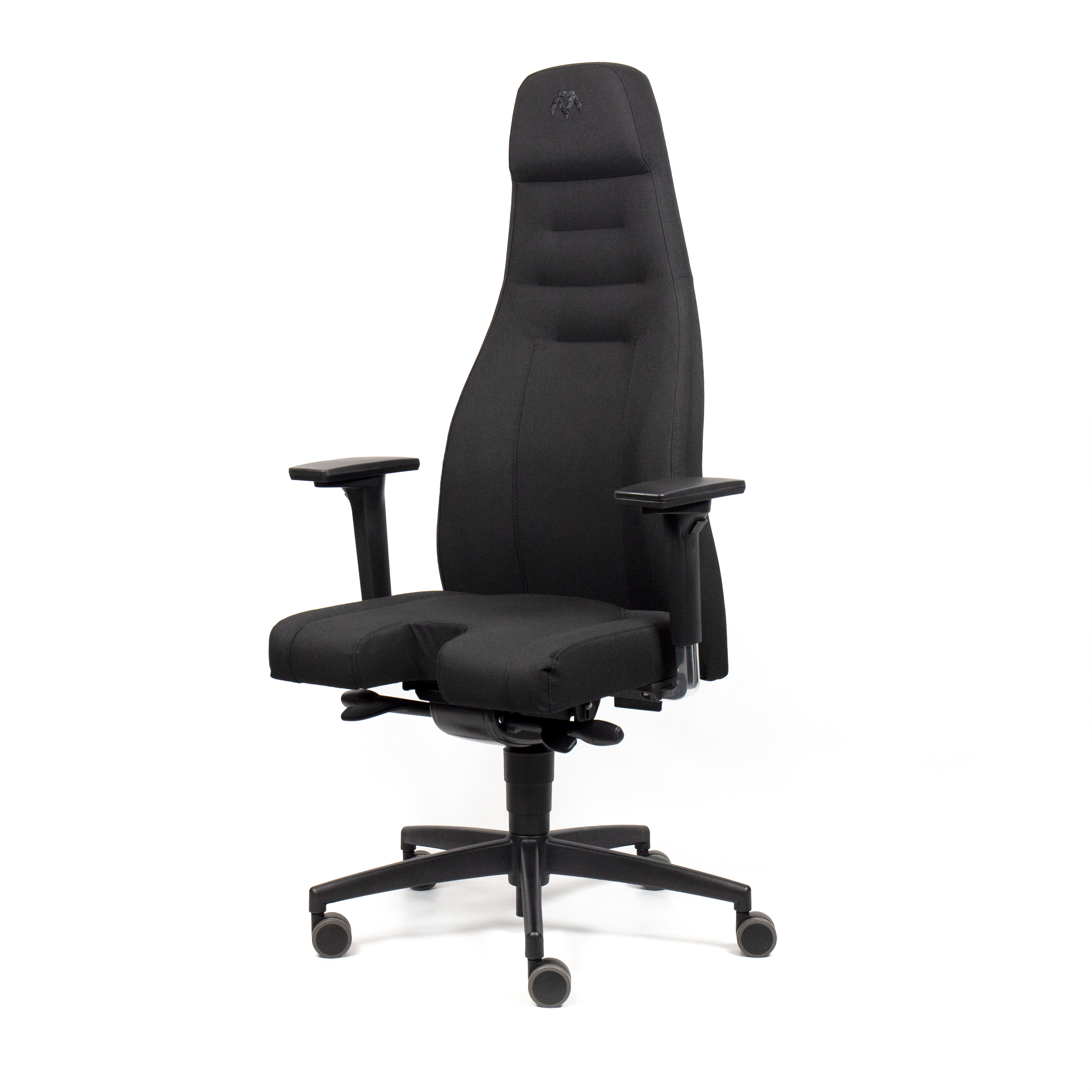

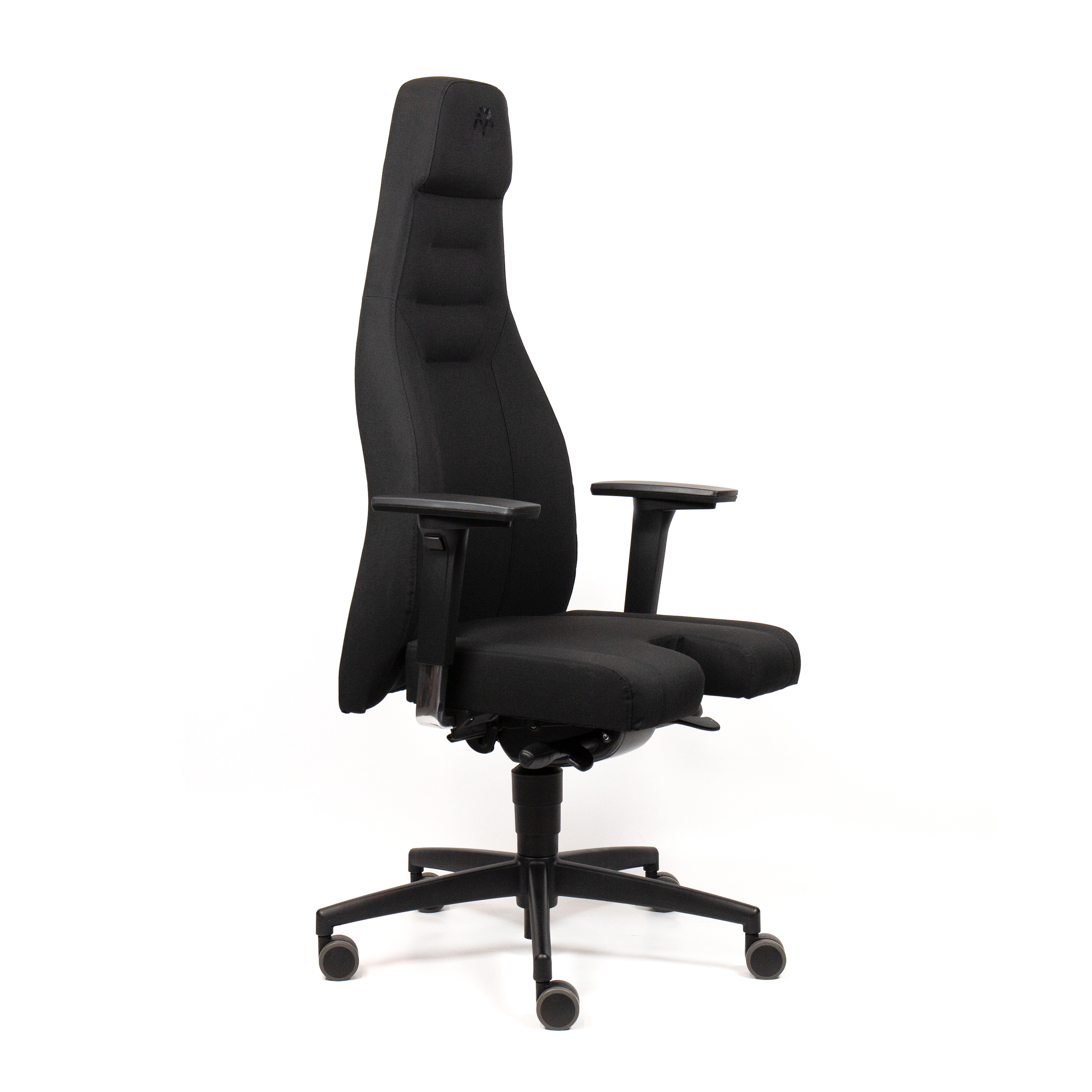

Flight Chair MFC-5 Night Falcon (without brake)
Flight Chair MFC-5 Night Falcon (without brake)

Design

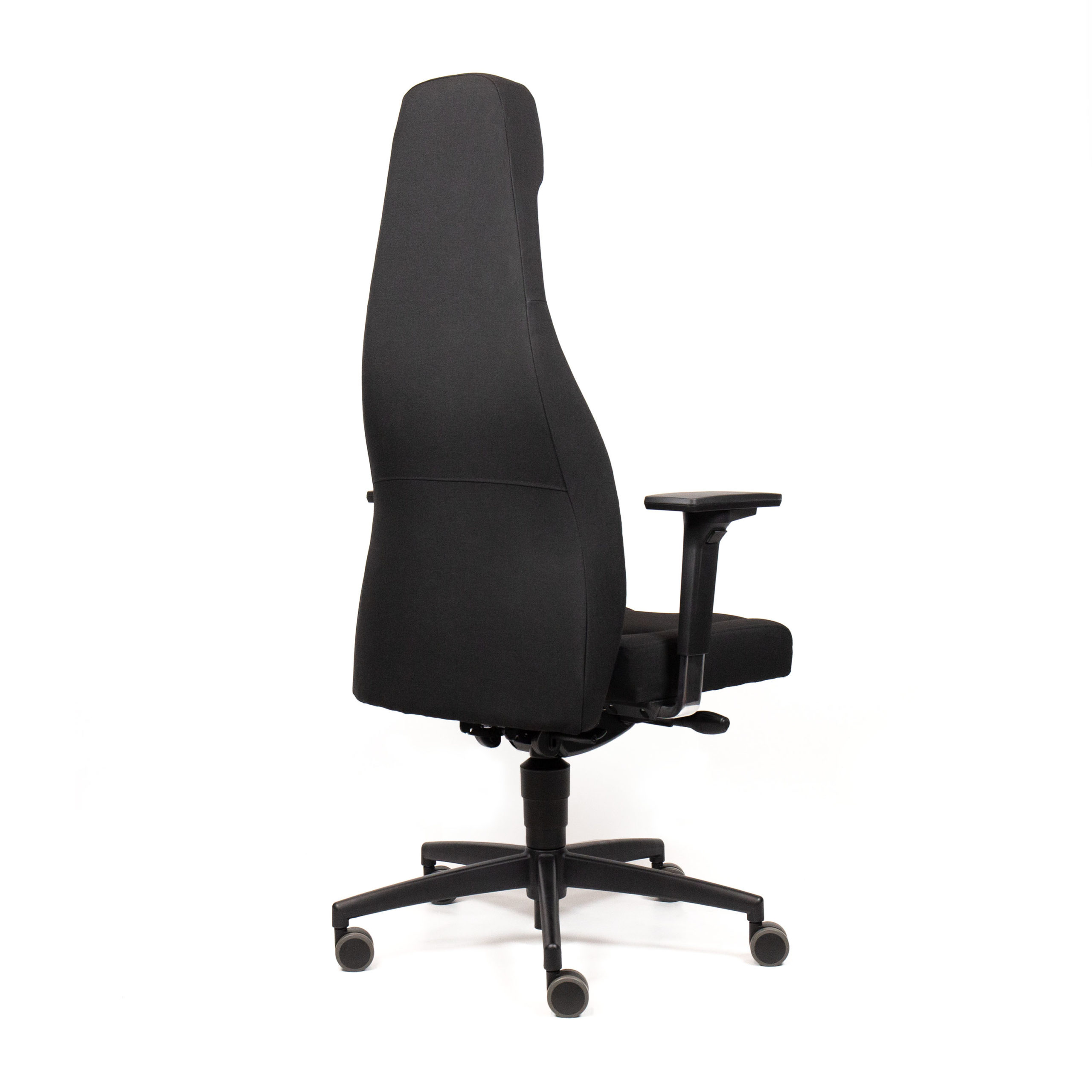

The most important feature is the specialized form of the backrest.

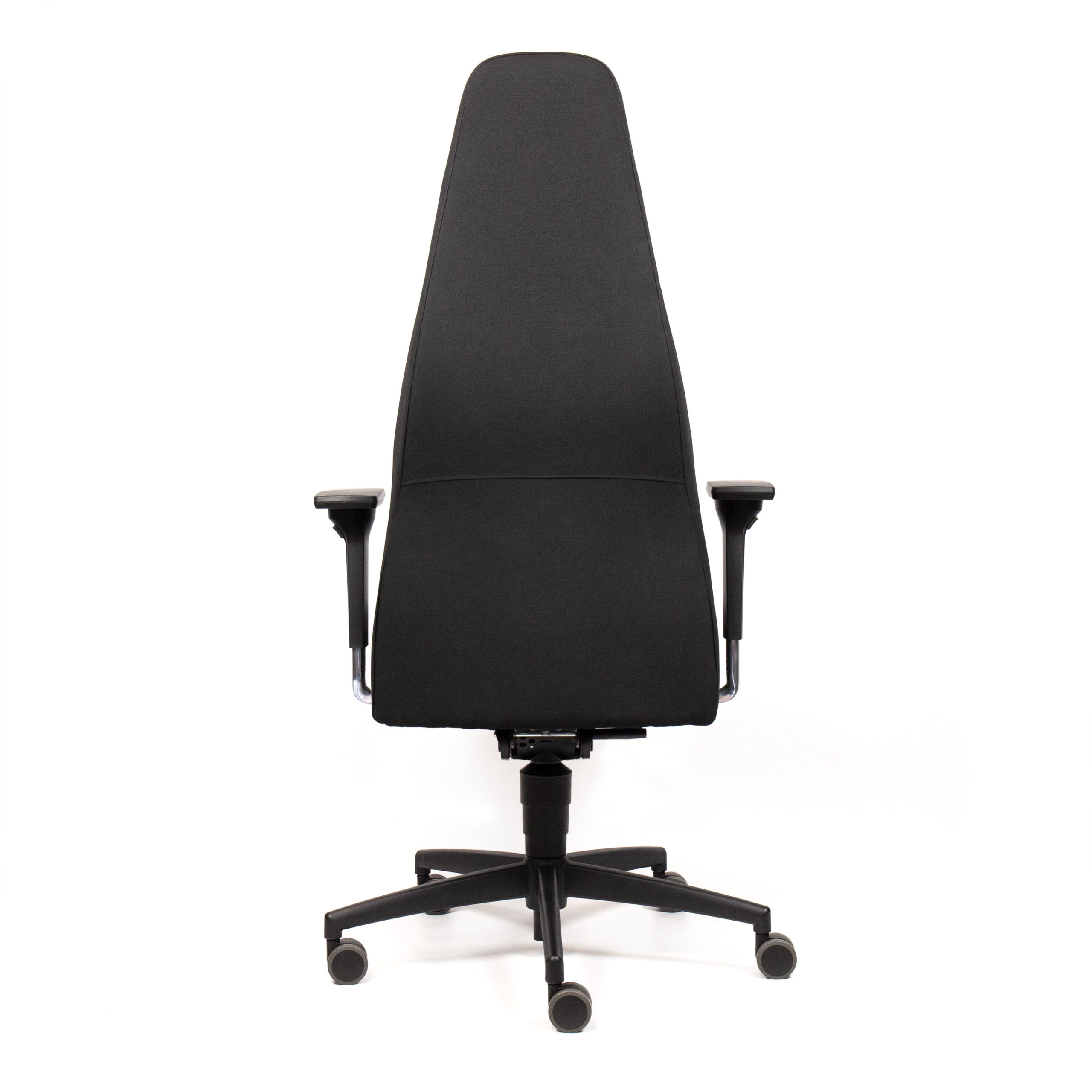

The wider contured bottom part provides stability and support for the pilot. The slimmer top part allows for full freedom of the shoulder and elbows to have complete unimpeded joystick/throttle motion range.

With this seat allows full unristricted operation of the joystick and throttle.

Features

  • Height adjustable
  • Synchronous mechanism – the seat and backrest move synchronously with each other
  • You can fix the backrest in 5 positions
  • The backrest’s height is adjustable in 6 positions
  • Seat depth adjustment 47-52 cm (103.6-114.6 in)
  • Padded 4-D armrests
  • Glass fiber reinforced base
  • Seat cut-out for center joysticks

Optional for pedal users:

  • Lockable easy-running casters for all floors
  • Rotation Brake

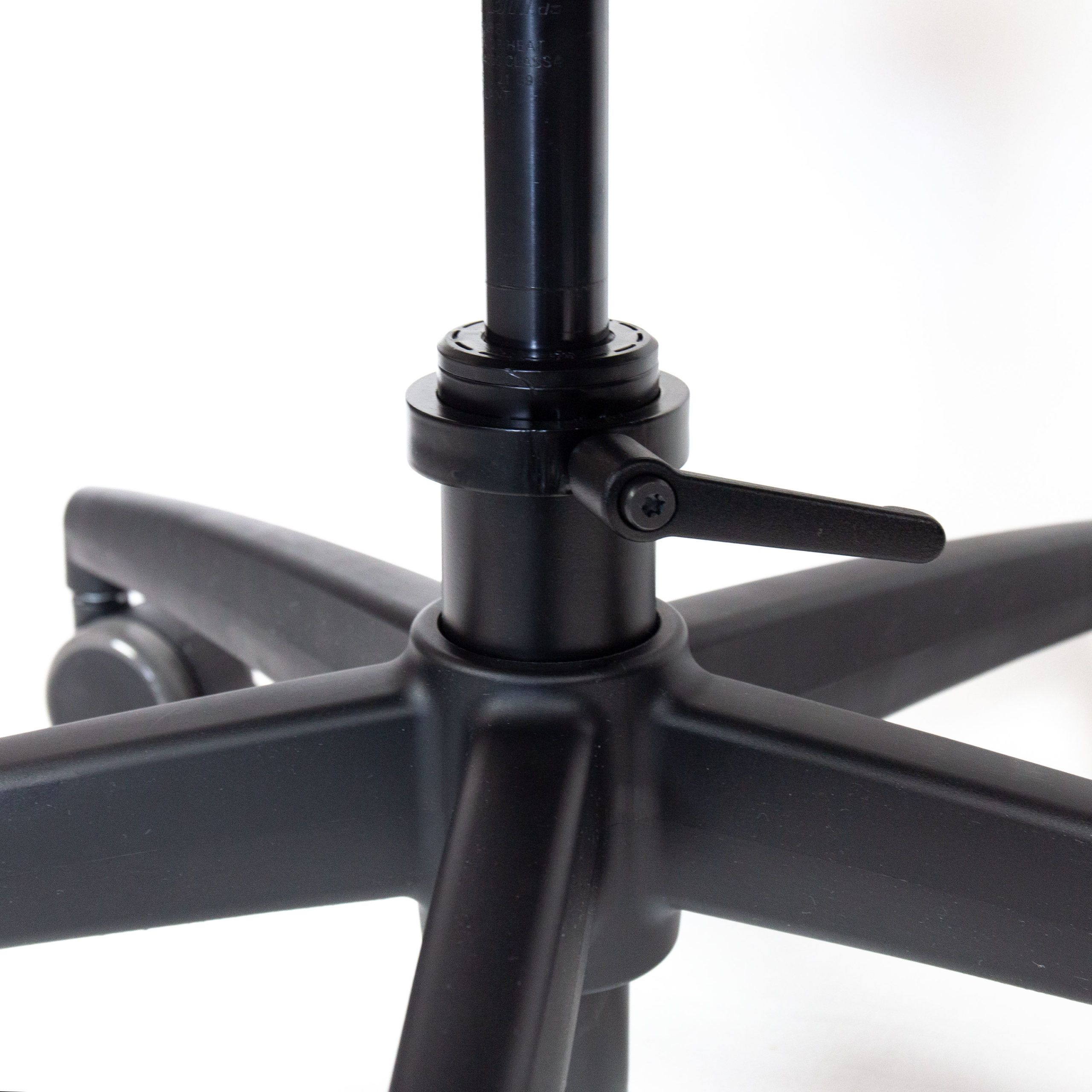

MFC Caster and Rotation Brake

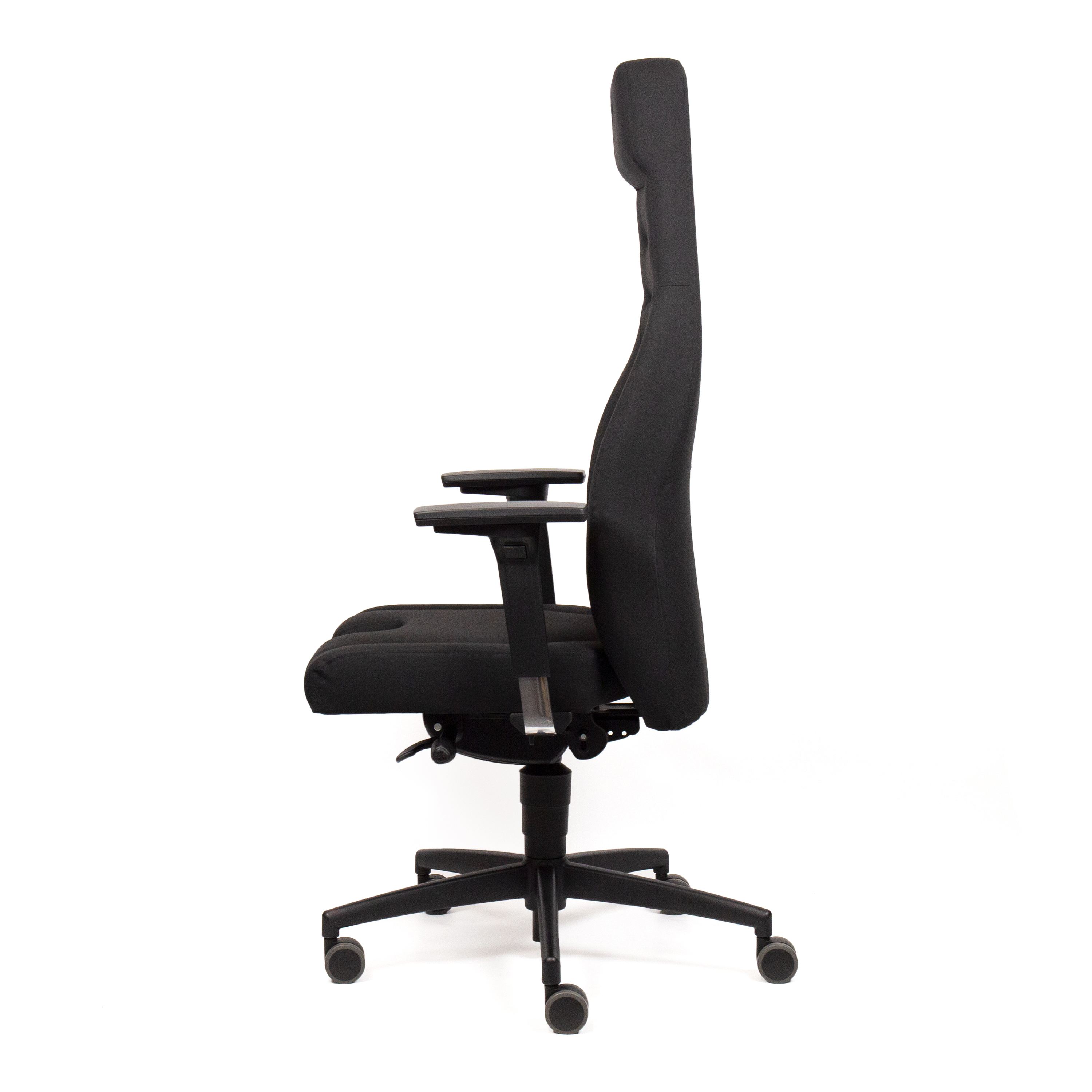

Flight Chair MFC-5 Night Falcon (without brake)

Cover

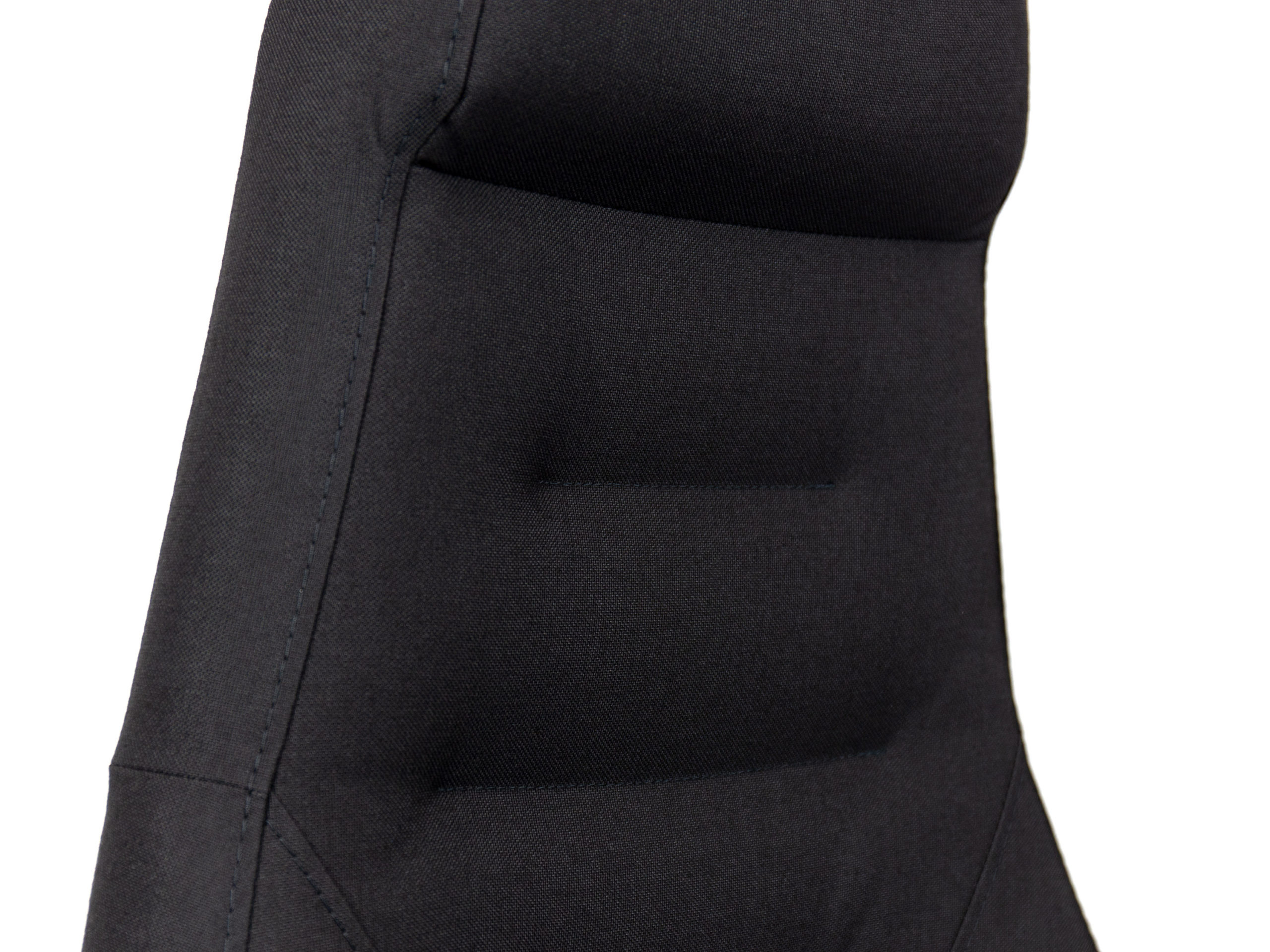

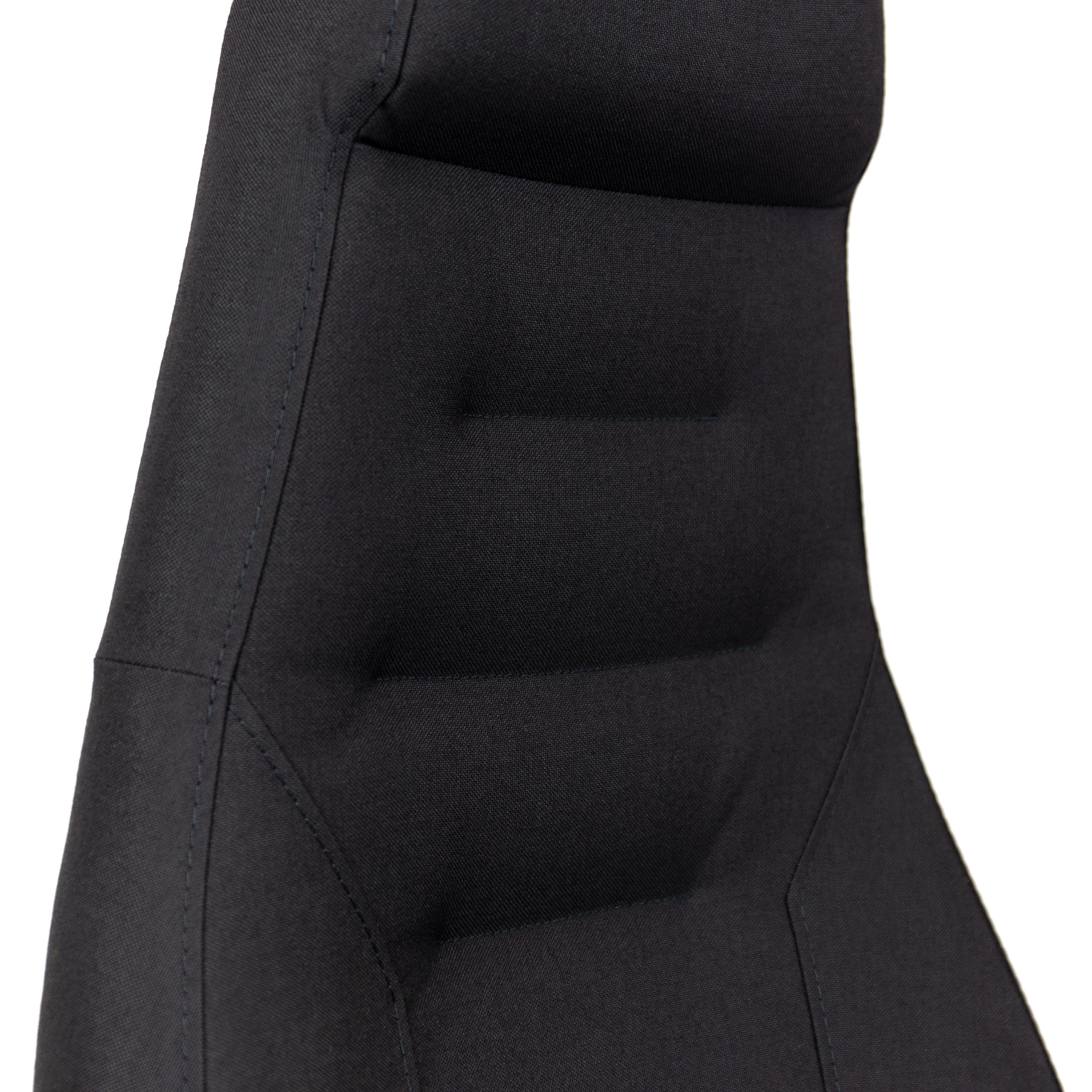

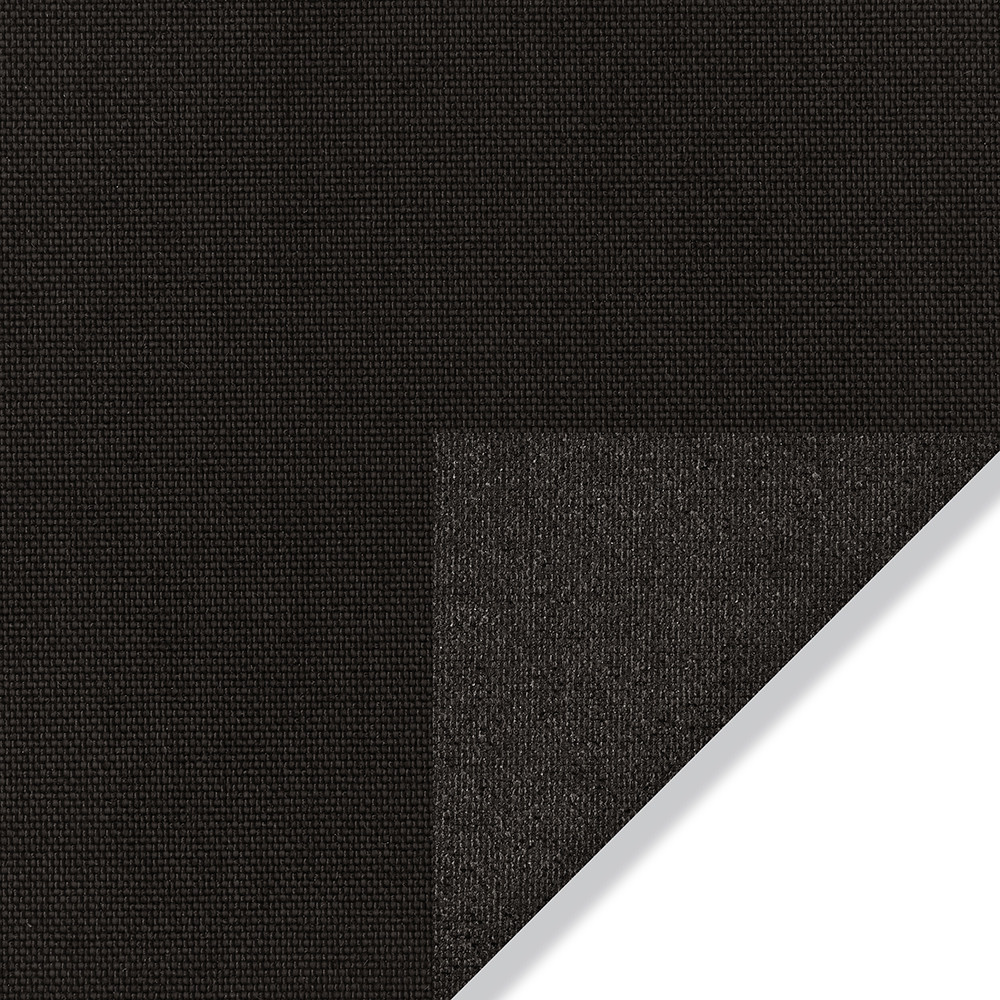

The chair cover is made from 100% CORDURA® 1000D Mil-Spec fabric. Because of its exceptional abrasion resistance and tear strength, Cordura is a clear choice for heavy-duty applications. It is made in the USA (Berry Compliant) and meets all the requirements for military specifications (DTL-32439A). This fabric is specifically tested for colorfastness, breaking strength, tear strength, water repellency, color and more in order to meet military standards.

Manufacture

A local North German manufacturer makes our chairs. It is a company known for producing high-quality office chairs since 1966. Each chair is made by hand.

Scope of Delivery

  • 1x Flight Chair – MFC-5 Night Falcon
  • 5x Lockable Casters (optional)
  • 1x Rotation Brake (optional)

The chair is made on order and has a delivery time of approx. 1-4 weeks.

Joystick / HOTAS chair mounts left / right joystick or throttle are not in the scope of delivery. They are only in the product images to illustrate the complete structure.

Add-ons

Technical Details

    Chair Factsheet
    Seat width: 51 cm (20 in)
    Seat depth: 42 cm + 5 cm (16.5 in + 2 in) adjustment range
    Backrest height: 81 – 88 cm (32 – 34.6 in)
    Seat thickness: 10 cm (3.9 in)
    Seat height: 47 – 60 cm (18.5 – 23.6 in)
    Total height: 128 – 148 cm (50.4 – 58.3 in)
    Armrest, lowest position, measured from the seat:17 cm (6.7 in)
    Armrest, highest position measured from the seat surface:25 cm (9.8 in)
    Base diameter: 65 cm (25.6 in)
    Density foam seat: 40 kg/m³
    Max. Load: 150 kg (330 lbs)

    Foams CFC- and CHC-free, single-origin, breathable cut foam
    All materials are GS tested, sorted, labeled, and recyclable

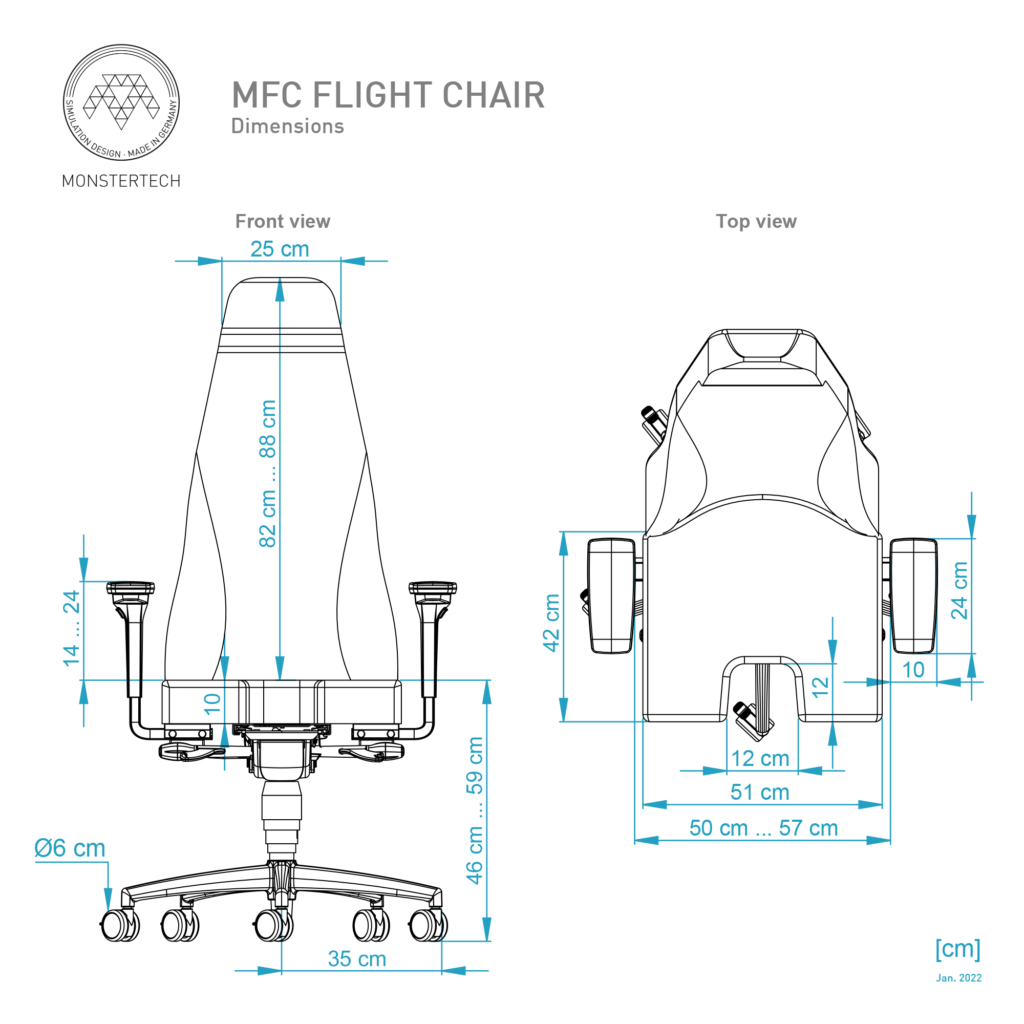

    Chair Dimensions

    FAQ

    • Are the Joystick/HOTAS Chair Mounts included?
      No, this product contains only the pilot seat. All attachment points on the bottom of the seat are available.

    PRESS / REVIEWS

    DOWNLOADS

    Instruction Manual(.pdf)

    Notice

    Partially pictures of accessories such as controllers or seats, which are not included in the shipment of the product, are shown on pictures. These serve only to better illustrate the overall view.
