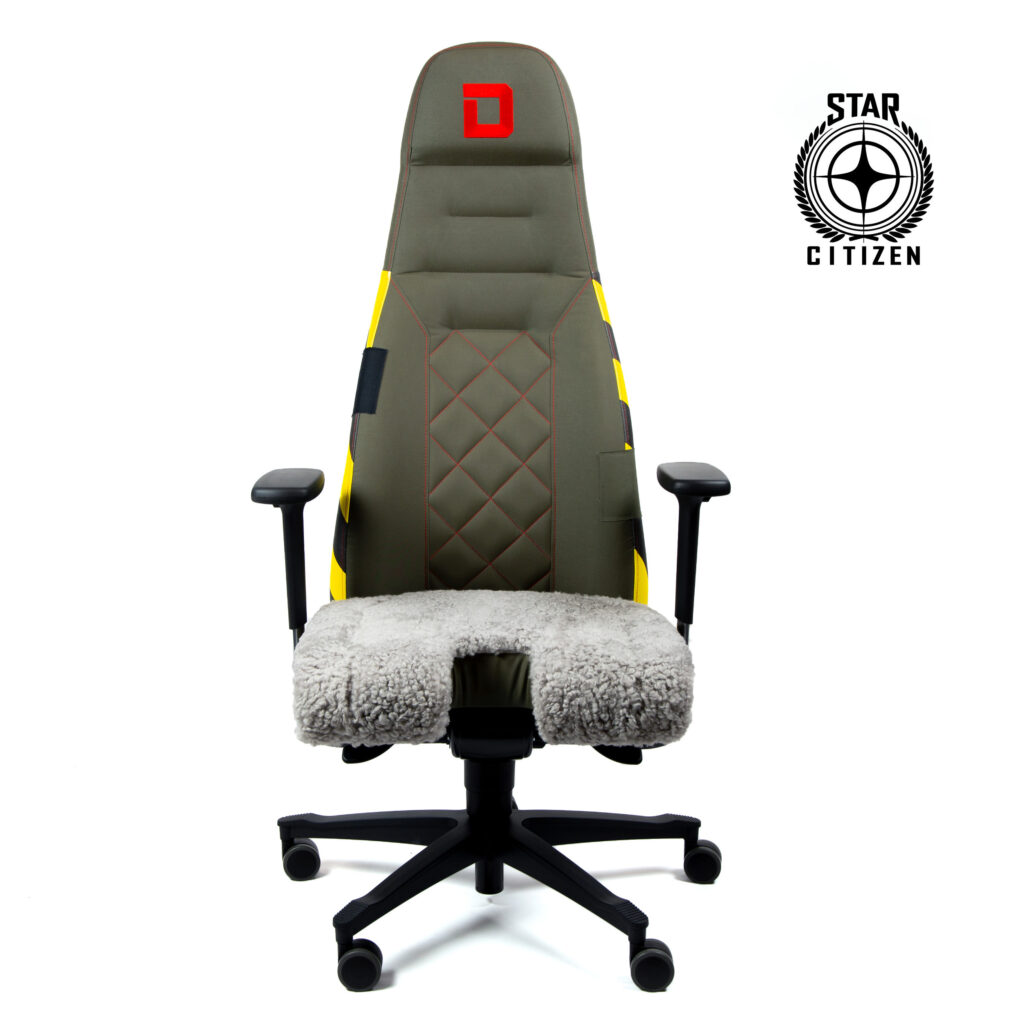

Flight Chair MFC – Drake Raider

Cover made of Cordura nylon mil-spec and genuine curly lambskin.

Selection:
Unbraked: Standard – for use without flight pedals.
Caster and Rotation Brake: The chair can be set in a fixed position for optimal pedal use.
Haptic System: 14 actuators with haptic feedback in the seat and backrest.

Production time: 1-5 week(s)

SKU: N/A Category:

Drake Interplanetary is a spacecraft manufacturer headquartered on Borea (Magnus II). The fifth largest spacecraft producer in United Empire of Earth, Drake was founded in SEY 2845 by Jan Dredge to produce the Cutlass medium fighter for militia use. Drake has cultivated its image since then to appeal to those seeking less conventional designs.

Spacecraft produced by Drake include the Cutlass line, the Caterpillar freighter, the Dragonfly ultralight, the Buccaneer fighter, the Herald information runner and the Vulture salvage ship.

Drake Golem

Drake Vulture

Concept

Our goal was to design a chair that combines the highest quality, ergonomic design and a comfortable seating experience, especially for long flight missions. At the same time, it should harmonize perfectly with different flight control setups.

In addition, the chair has a central cutout in the seat, which allows a center joystick to be mounted in an optimal position.

Design

The most important part of the design is the shape of the backrest:

The wider lower part provides the pilot with stability, while the narrower upper part allows unrestricted freedom of movement in the shoulder and elbow area.

This means the seat offers maximum freedom of movement for smooth operation of the joystick and throttle without any restrictions.

Features

  • Height adjustable
  • Synchronous mechanism – the seat and backrest move synchronously with each other
  • You can fix the backrest in 5 positions
  • The backrest’s height is adjustable in 6 positions
  • Seat depth adjustment
  • Seat tilt adjustment
  • Padded 4-D armrests
  • Glass fiber reinforced base
  • Seat cut-out for center joysticks
  • Interchangeable Velcro patch on the back

Optional for pedal users:

  • Lockable easy-running casters for all floors
  • Rotation Brake
MFC Caster and Rotation Brake

Cover

All logos are embroidered in great detail and reflect the ambient light in an elegant way.

The backrest is made of 100% CORDURA® Mil-Spec fabric. Because of its exceptional abrasion resistance and tear strength, Cordura is a clear choice for heavy-duty applications. This fabric is specifically tested for colorfastness, breaking strength, tear strength, water repellency, color and more in order to meet military standards.

The seat is made of genuine curly lambskin and therefore nestles softly against the body. In addition, it is breathable, allergy-friendly and comes from New Zealand. The wool height of the dyed natural curl is about 2cm.

Officially Licensed by CIG

MTSIM Haptics

What if you could touch sound?

Our technology transforms complex data and sound
into tangible haptic feedback.

14 actuators

Complete haptic feedback across the entire seat and backrest.

Plug & Play

Connect the seat to your PC via USB, the software will recognize the seat – and you’re ready to go.

Invisible

Our technology is integrated directly into the seat – without compromising comfort.

Data & Sound

Works directly with telemetry data from supported games or with any audio source – whether game, movie or music.

More information about MTSIM Haptics

Scope of Delivery

  • 1x Flight Chair MFC – Drake Raider
  • 1x Arm Rest Set
  • 5x Lockable Casters (optional)
  • 1x Rotation Brake (optional)
  • 1x Haptic System (optional)

Joystick/HOTAS seat mounts left/right/center, joystick, throttle, button boxes or other accessories are not included in the scope of delivery and are only used on the product images to illustrate the complete structure.

Technical Details

    Factsheet
    Seat width: 51 cm (20 in)
    Seat depth: 42 cm + 5 cm (16.5 in + 2 in) adjustment range
    Backrest height: 81 – 88 cm (32 – 34.6 in)
    Seat thickness: 10 cm (3.9 in)
    Seat height: 47 – 60 cm (18.5 – 23.6 in)
    Total height: 128 – 148 cm (50.4 – 58.3 in)
    Armrest, lowest position, measured from the seat:17 cm (6.7 in)
    Armrest, highest position measured from the seat surface:25 cm (9.8 in)
    Base diameter: 65 cm (25.6 in)
    Density foam seat: 40 kg/m³
    Max. Load: 150 kg (330 lbs)

    Foams CFC-, CHC-free, pure, breathable cut foam
    All materials are GS tested, sorted, labelled and recyclable

    Dimensions
    made-in-eu

    DOWNLOADS

    Instruction Manual(.pdf)

    Notice

    Partially pictures of accessories such as controllers or seats, which are not included in the shipment of the product, are shown on pictures. These serve only to better illustrate the overall view.
